150Mbps Wireless USB Adapter

WD-1508

• 150mbps wireless transmission rate

• provides two methods of operation: infrastructure and ad-hoc

• 2dbi fixed high-performance antenna

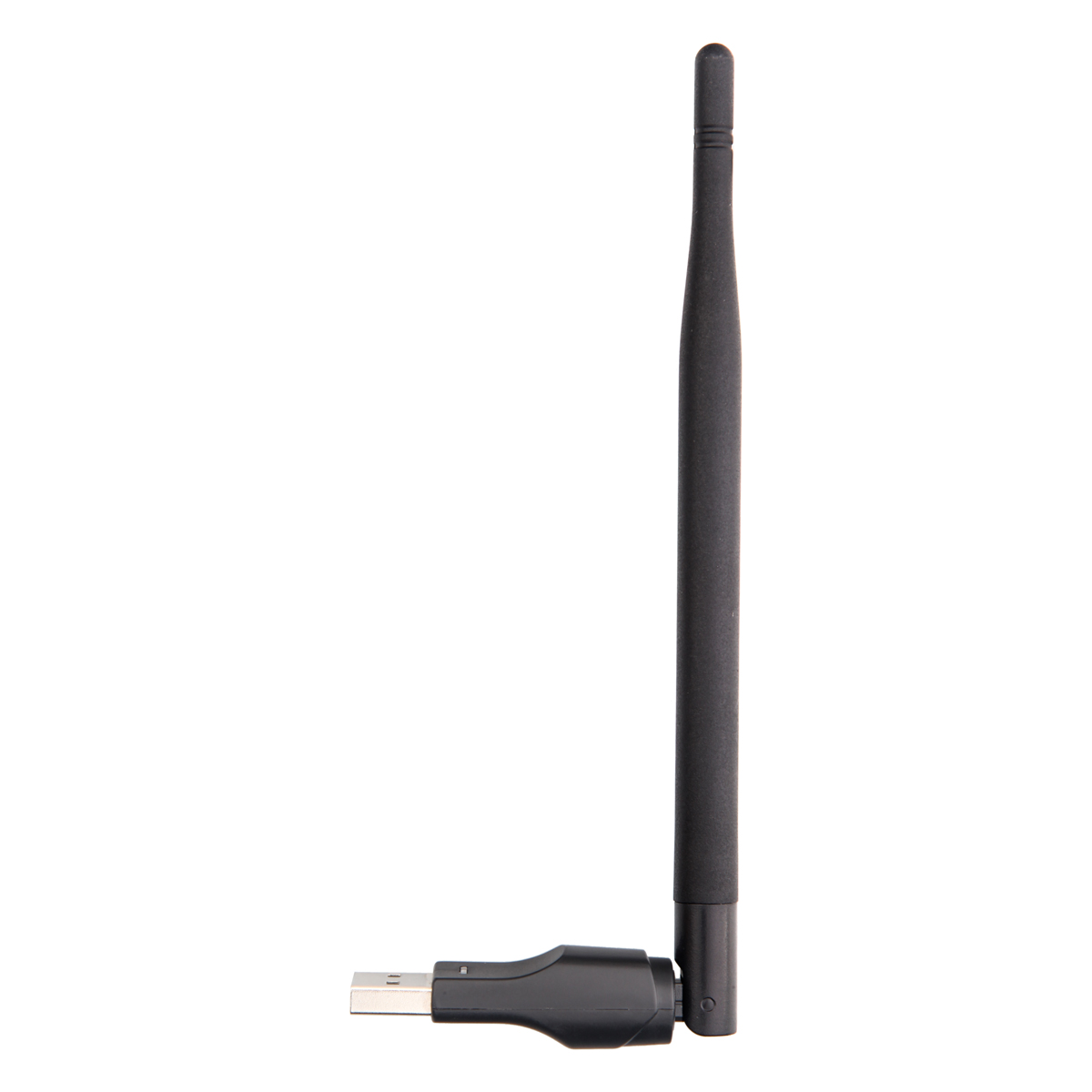

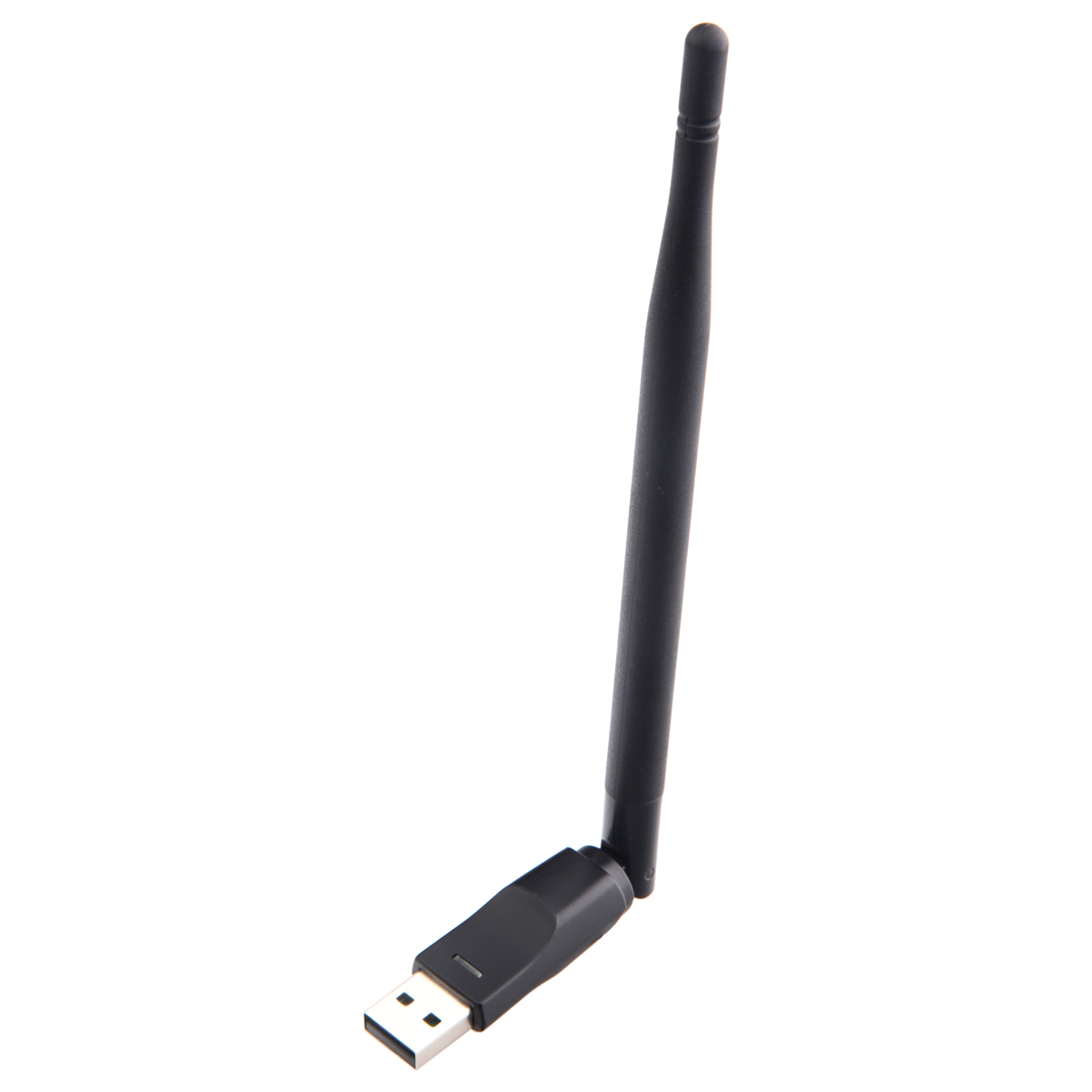

(replaceable 5dbi antenna)

• supports 64/128-bit wep, complies with 128 bit wpa

standard(tkip/aes), supports mic, iv expansion,

shared key authentication, ieee 802.1x

• supports windows xp/vista/win7/win8/win8.1/win10/mac os

• seamlessly compatible with 802.11b/g/n devices

Specification table

chipset	rt5370/mt7601/rtl8188eus
interface	usb2.0 hi-speed connector
wireless speed	11n: up to 150mbps
frequency range	2.4-2.4835ghz
wireless transmit power	20dbm(max eirp)
modulation technique	ofdm/cck/16-qam/64-qam
work mod	ad-hoc / infrastructure
wireless security	64/128 bits wep, wpa/wpa2, wpa-psk/wpa2-psk (tkip/aes)
temperature range	operating: -20℃ to 70℃ storage: -40℃ to 90℃
humidity	operating: 5% to 95% (non-condensing) storage: max. 90% (non-condensing)
support operating system	windows xp/vista/linnux/ win 7/win 8 /win8.1 /win10 /mac os
dimensions (h x w x d)	2dbi: 137 x 15 x16 mm 5dbi: 200 x 15 x16 mm
